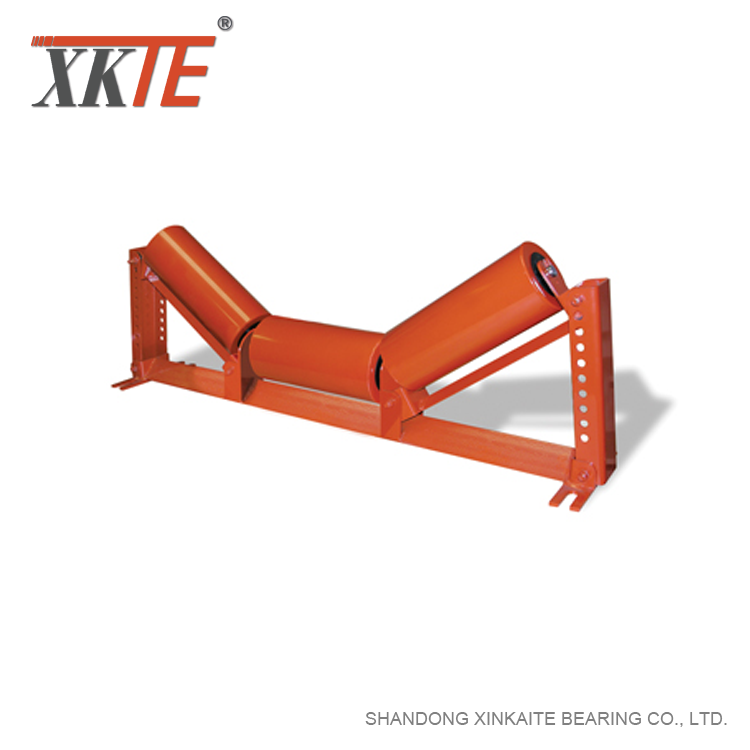

Conveyor 3 Roll Troughing Idler Spare Parts

Поделиться с:
    Вид оплаты: L/C,T/T,Paypal,Western Union
    Incoterm: FOB,CFR,CIF
    Количество минимального заказа: 1 Piece/Pieces
    Срок поставки: 7 дней

Базовая информация

Модель: 3 Roll Idler

Seal: Labyrinth Seal

Standard: Shandong,China

Roller Material: Seamless Roller Pipe,welded Roller Pipe

Roller Bearing: Ball Bearing 6204,6205,6305,6306,6307,6308

Rolelr Diameter: 89mm-195mm

Belt Length: 190-3400mm

Bearing Housing: Stamping Iron

Shaft: 20-100mm,

Application: Bulk Material Conveyor

Model Number: TD75 DTII TK

Additional Info

Подробности Упаковки: 1)Neutral package & wooden package 2)Carton package+pallet 3)Wooden package+pallet 4)As customer request

производительность: 50000 Pieces/day

марка: XKTE/OEM

транспорт: Ocean,Land,Air

Место происхождения: Shandong, China

Способность поставки: 50000 Pieces/Day

Сертификаты : ISO9001

Порт: Qingdao,Shenzhen,Guangzhou

Описание продукта

Support the belt in the section of the conveyor that transports the material. These idlers may be flat or troughed to shape the belt to prevent spillage and are available in 20°, 35° and 45° trough angles with equal or unequal roll lengths. Normal spacing is 3 to 5 feet. 3 Roll Troughing Idlers are the most widely structures in the bulk material handling belt conveyor.

XKTE specializes in manufacturing ball bearing for idler roller and roller bearing for conveyor drum pulley. with good quality and anti seizeing performance in dusty harsh environment.



Conveyor Idler Components





1. Conveyor Idler Tube or shell.

The Shells are made from steel tube with close tolerance ensuring smooth, Shock free and eccentricity free running with minimum dimensional run out, smallest rotating weight of rollers requires low horse power, thereby conserving power and energy due to lowest possible dynamic friction.

Idler Tube



2. Seals

Conveyor idler Seals should be multi labyrinth type to prevent ingress of dirt, air and moisture.

The outer seal should be corrosion resistant.

Seals Type: TR, TK75, DTII

Conveyor Labyrinth Seal



3. Bearing housing are formed from strip steel deep pressed in automatic presses machine, this tolerance allowing a perfect match between the bearing and the relevant parts of the sealing.


Idler Bearing Housing

4. Bearing.Large clearance C3/C4 serials deep groove ball bearings, reinforced cage with big rivet, thick inner ring and outer ring. usually use double sealed structure to improve the water and dust proof ability.


Unique Design Seize-Resistant Deep Groove Ball Bearings: 6200 series-6300 series

1. KA/TN/TN9 nylon retainer Type

2. Open Type

3. Sealed Type

4. CSK series One way clutch bearing

Bearing For Idler Details


3 Bearing For Idler Roller

Other Main Products for idler:

6200/6300 series deep groove ball bearing

6200/6300 series ball bearings are well suited for low to heavy radial loads and can be configured for various application speeds and running precision requirements. Reinforced iron Retainer, Super-finished deep groove, smooth race, thicker inner and outer ring.


6200/6300 Series Deep Groove Ball Bearing

Model

Bore Size(mm)

Outer Diameter(mm)

High(mm)

Weight(kg)

ball no.

Cr(kN)

Cor(kN)

6204

20

47

14

0.106

8

12.8

6.65

6205

25

52

15

0.128

9

14

7.85

6305

25

62

17

0.232

7

20.6

11.3

6306

30

72

19

0.346

8

26.7

15

6307

35

80

21

0.457

8

33.4

19.3

6308

40

90

23

0.639

8

40.8

24

6309

45

100

25

0.837

8

52.8

31.8

6310

50

110

27

1.082

8

61.8

38

Material  Chrome Steel GCr15



5. Shaft: Shaft is formed from cold drawn round bar and calibrated to ISO to ensure precise assembling of bearing.

Shaft



Conveyor Idler Roller Size:

Standard Diameter

Standard Inner Diameter(mm)

Length scope(mm)

Bearngs Type

mm

Inch

(Min-Max)

89

3 1/3

60/50

170-3400

6204

102

4

76

170-3400

6204 6205

108

4 1/4

89/76/60

170-3400

6204 6205

114

4 1/2

89/76

170-3400

6204 6205

127

5

89

170-3400

6204 6205

133

5 1/4

89/70/63.5

170-3400

6204 6205

140

4 1/2

89

170-3400

6204 6205

152

6

108/76

170-3400

6204 6205 6206 6305 6306

159

6 1/4

108

170-3400

6204 6205 6206 6305 6306

194

7 5/8

159/133

170-3400

6205 6206 6305 6306 6307 6308

Coal Mining Belt Conveyor

Features:
Support the return belt
Excellent roundness, good dynamic balancing
Smooth operation, easy replacement
Long service life, maintenance-free



Special: XKTE - Ball Bearings and Rolling Bearings in Conveyor Technology

XKTE is the specialist in rolling bearing technology for the mechanical application of continuous conveyors.


Whether bulk or general cargo conveyor, we have the right solutions for your requirements. Application-optimized rolling bearings from XKTE master all challenges: Heavily different temperatures, moisture, dust, dirt, as well as noise and vibration reduction.

Bulk Material Handling Belt Conveyor


About US:

Shandong Xinkaite Bearing Co., Ltd. is a professional belt conveyor roller bearing manufacturer enterprise, specialized in manufacturing bearings for the bulk material handling industry and supply all kinds of conveyor idler components. our bearings are being used in multiple applications including: mining machinery, carrying idlers and reverse rollers as well as drum pulley. Our factory is located in Yandian of Liaocheng in mainland China, covered an area of 18,000 square meters, registered trademarks "XKTE".


And there are many long-term fixed partners of ours within the areas centered by conveyor roller bearing industry. With our company`s gradually growing, from the rough to the bearing, we set up a one-stop production line, with 50000 pieces produced every day on our automated production lines. all products are manufactured according to GB standards or in compliance with your specific requirements.

Factory New


Our Service:

1. Volume production and large Inventories, stable quality

2. OEM is supported

3. Small order accept

4. Various Brands

5. Wide Array of Applications

6. Fast delivery

7. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.

Packing


Packing New
