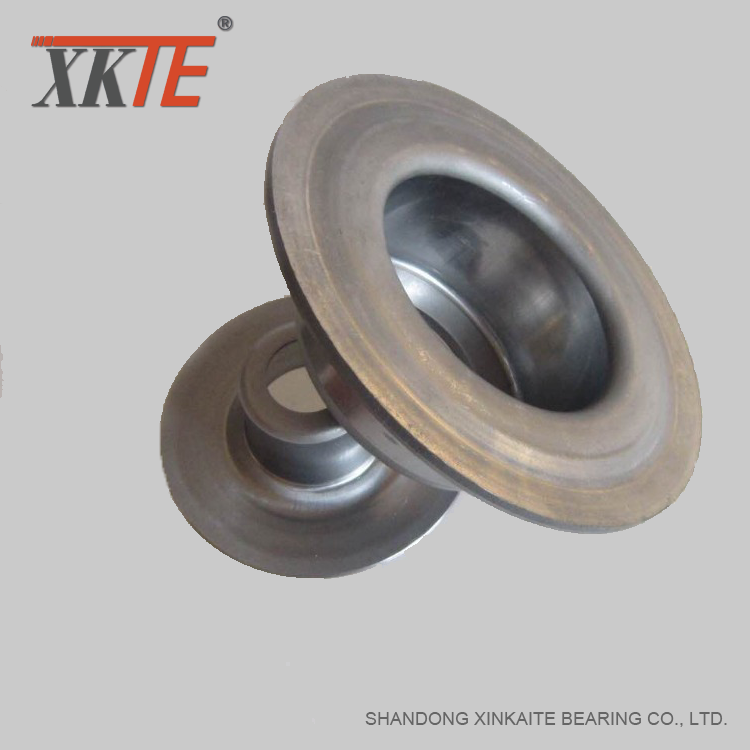

Conveyor Idler Roller Bearing Housing TK 6306

Поделиться с:
    Вид оплаты: L/C,T/T,Paypal,Western Union
    Incoterm: FOB,CFR,CIF,EXW
    Количество минимального заказа: 1 Piece/Pieces
    Срок поставки: 7 дней

Базовая информация

Модель: TK 6306

Model Number: TKII 6306

Bearing Model: Deep Groove Ball Bearing 6306

Application: Conveyor Roller

Inner Diameter: 62mm

Out Diameter: 153 Mm

Pipe Diameter: 159 Mm

Thickness Of Steel Plate: 4 Mm

Place Of Origin: Shandong,China

Bearing Seat Diameter: 72 Mm

Shaft: 30 Mm

Additional Info

Подробности Упаковки: 1)Neutral package & wooden package 2)Carton package+pallet 3)Wooden package+pallet 4)As customer request

производительность: 50000 Pieces/day

марка: XKTE/OEM

транспорт: Ocean,Land,Air

Место происхождения: Shandong, China

Способность поставки: 50000 Pieces/Day

Сертификаты : ISO9001

Порт: Qingdao,Shenzhen,Guangzhou

Описание продукта

Stamped Bearing Housings are made from deep pressed in presses machine, We are professional manufacturer of conveyor bearing and also offer install drawing and all kinds of data and help you to solve all the problems in installing. Our factory supply DTII TK bearing housing for idler roller from 84-219mm, conveyor roller seals and other conveyor spare parts.

Bearing Housing Structure


Parameters of TK6306-159 bearing housing
Pipe Diameter
159 mm
Shaft Diameter
30 mm
Outer Diameter
153 mm
Hole Diameter
45 mm
Bearing seat Diameter
72 mm
Thickness
4 mm
Other  TK models
Model
6203, 6204, 6205, 6305, 6306, 6307, 6308, 6309, 6310, 6312
Pipe Diameter
63~219 mm
Shaft Diameter
17~60 mm
Outer Diameter
59~213 mm
Hole Diameter
25~94 mm
Bearing seat Diameter
40~130 mm
Thickness
2.5~6 mm

Conveyor Idler Bearing Housing



Conveyor Bearing Housing


Size:

4 Type: TK. TKII. TKIII.DTII.
For Bearing: 6204.6205.6305.6306.6307.6308.6309.6310.6312
Shaft: 20mm.25mm.30mm.35mm.40mm.45mm.50mm etc.

Pipe: 63mm.76mm.102mm.114mm.152mm.165mm.176mm.194mm.219mm


Bearing Housing Models



Special: XKTE - Ball Bearings and Rolling Bearings in Conveyor Technology

XKTE is the specialist in rolling bearing technology for the mechanical application of continuous conveyors.

Whether bulk or general cargo conveyor, we have the right solutions for your requirements. Application-optimized rolling bearings from XKTE master all challenges: Heavily different temperatures, moisture, dust, dirt, as well as noise and vibration reduction.

Bulk Material Handling Belt Conveyor

For idler roller:

Unique Design Seize-Resistant Deep Groove Ball Bearings: 6200 series-6300 series

1. KA/TN/TN9 nylon retainer Type

2. Open Type

3. Sealed Type

4. CSK series One way clutch bearing

Bearing For Idler Details



Other Main Products for idler:

6200/6300 series deep groove ball bearing

6200/6300 series ball bearings are well suited for low to heavy radial loads and can be configured for various application speeds and running precision requirements. Reinforced iron Retainer, Super-finished deep groove, smooth race, thicker inner and outer ring.

6200/6300 Series Deep Groove Ball Bearing

Model

Bore Size(mm)

Outer Diameter(mm)

High(mm)

Weight(kg)

ball no.

Cr(kN)

Cor(kN)

6204

20

47

14

0.106

8

12.8

6.65

6205

25

52

15

0.128

9

14

7.85

6305

25

62

17

0.232

7

20.6

11.3

6306

30

72

19

0.346

8

26.7

15

6307

35

80

21

0.457

8

33.4

19.3

6308

40

90

23

0.639

8

40.8

24

6309

45

100

25

0.837

8

52.8

31.8

6310

50

110

27

1.082

8

61.8

38

Material  Chrome Steel GCr15


We will consider all the applicable variables in your application, such as extreme temperature variation, dust and dirt, as well as noise and vibration requirements.


Professional Conveyor Bearing Manufacturer for Conveyor Idler Roller, Impact idler, Troughing idler and pulley bearing for bend pulley, drive pulley etc.


About US:

Shandong Xinkaite Bearing Co., Ltd. is a professional belt conveyor roller bearing manufacturer enterprise, specialized in manufacturing bearings for the bulk material handling industry. our bearings are being used in multiple applications including: mining machinery, carrying idlers and reverse rollers as well as drum pulley. Our factory is located in Yandian of Liaocheng in mainland China, covered an area of 18,000 square meters, registered trademarks "XKTE".


And there are many long-term fixed partners of ours within the areas centered by conveyor roller bearing industry. With our company`s gradually growing, from the rough to the bearing, we set up a one-stop production line, with 50000 pieces produced every day on our automated production lines. all products are manufactured according to GB standards or in compliance with your specific requirements.

Factory New


Our Service:

1. Volume production and large Inventories, stable quality

2. OEM is supported

3. Small order accept

4. Various Brands

5. Wide Array of Applications

6. Fast delivery

7. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.

Packing


Packing New
