Shandong Xinkaite Bearing Co., Ltd.
Shandong Xinkaite Bearing Co., Ltd.
Idler Roller Bearing Seat,Conveyor Bearing Seat,Roller Bearing Seat
| Вид оплаты: | L/C,T/T,Paypal,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF |
| Количество минимального заказа: | 1 Piece/Pieces |
| Срок поставки: | 7 дней |
Модель: Bearing Seat
Model Number: TK/TKII/DTII 6307
Bearing Model: Deep Groove Ball Bearing 6307
Application: Conveyor Roller
Inner Diameter: 35mm
Out Diameter: 153 Mm
Pipe Diameter: 159 Mm
Thickness Of Steel Plate: 4 Mm
Place Of Origin: Shandong,China
Bearing Seat Diameter: 80 Mm
Shaft: 35 Mm
Подробности Упаковки: 1)Neutral package & wooden package 2)Carton package+pallet 3)Wooden package+pallet 4)As customer request
производительность: 50000 Pieces/day
марка: XKTE/OEM
транспорт: Ocean,Land,Air
Место происхождения: Shandong, China
Способность поставки: 50000 Pieces/Day
Сертификаты : ISO9001
Порт: Qingdao,Shenzhen,Guangzhou

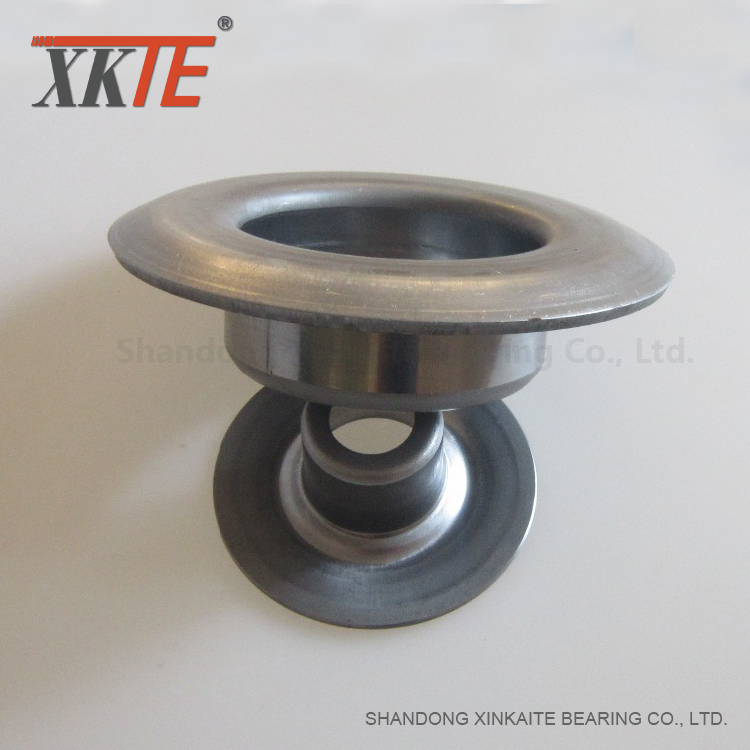

Conveyor roller bearing Bearing Seat. also called conveyor roller beairng housing or Stamping Steel conveyor roller end cap, It is a accessories at the end of roller, It is used to place the labyrinth seal structure and bearing. Usually use material SPHC steel, it is a commercial quality hot rolled steel. designation defined in JIS G 3131 standard. XKTE specializes in producing ball bearings for bulk material handling conveyor idler roller and supplying roller spare parts.
Other TK models
Model
6203, 6204, 6205, 6305, 6306, 6307, 6308, 6309, 6310, 6312
Pipe Diameter
63~219 mm
Shaft Diameter
17~60 mm
Outer Diameter
59~213 mm
Hole Diameter
25~94 mm
Bearing seat Diameter
40~130 mm
Thickness
2.5~6 mm
Size:
4 Type: TK. TKII. TKIII.DTII.Pipe: 63mm.76mm.102mm.114mm.152mm.165mm.176mm.194mm.219mm
Special: XKTE - Ball Bearings and Rolling Bearings in Conveyor Technology
XKTE is the specialist in rolling bearing technology for the mechanical application of continuous conveyors.
Whether bulk or general cargo conveyor, we have the right solutions for your requirements. Application-optimized rolling bearings from XKTE master all challenges: Heavily different temperatures, moisture, dust, dirt, as well as noise and vibration reduction.
For idler roller:
Unique Design Seize-Resistant Deep Groove Ball Bearings: 6200 series-6300 series
1. KA/TN/TN9 nylon retainer Type
2. Open Type
3. Sealed Type
4. CSK series One way clutch bearing
Other Main Products for idler:
6200/6300 series deep groove ball bearing
6200/6300 series ball bearings are well suited for low to heavy radial loads and can be configured for various application speeds and running precision requirements. Reinforced iron Retainer, Super-finished deep groove, smooth race, thicker inner and outer ring.
6200/6300 Series Deep Groove Ball Bearing
Model
Bore Size(mm)
Outer Diameter(mm)
High(mm)
Weight(kg)
ball no.
Cr(kN)
Cor(kN)
6204
20
47
14
0.106
8
12.8
6.65
6205
25
52
15
0.128
9
14
7.85
6305
25
62
17
0.232
7
20.6
11.3
6306
30
72
19
0.346
8
26.7
15
6307
35
80
21
0.457
8
33.4
19.3
6308
40
90
23
0.639
8
40.8
24
6309
45
100
25
0.837
8
52.8
31.8
6310
50
110
27
1.082
8
61.8
38
Material Chrome Steel GCr15
We will consider all the applicable variables in your application, such as extreme temperature variation, dust and dirt, as well as noise and vibration requirements.
Professional Conveyor Bearing Manufacturer for Conveyor Idler Roller, Impact idler, Troughing idler and pulley bearing for bend pulley, drive pulley etc.
About US:
Shandong Xinkaite Bearing Co., Ltd. is a professional belt conveyor roller bearing manufacturer enterprise, specialized in manufacturing bearings for the bulk material handling industry. our bearings are being used in multiple applications including: mining machinery, carrying idlers and reverse rollers as well as drum pulley. Our factory is located in Yandian of Liaocheng in mainland China, covered an area of 18,000 square meters, registered trademarks "XKTE".
And there are many long-term fixed partners of ours within the areas centered by conveyor roller bearing industry. With our company`s gradually growing, from the rough to the bearing, we set up a one-stop production line, with 50000 pieces produced every day on our automated production lines. all products are manufactured according to GB standards or in compliance with your specific requirements.
Our Service:
1. Volume production and large Inventories, stable quality
2. OEM is supported
3. Small order accept
4. Various Brands
5. Wide Array of Applications
6. Fast delivery
7. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
Packing
