Bulk Solids Conveyors Components Buffer Idler Roller

Поделиться с:
    Вид оплаты: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Количество минимального заказа: 1 Set/Sets
    Срок поставки: 7 дней

Базовая информация

Модель: Buffer Idler

материал: Стали

заявка: Химическая индустрия, Электростанция

Application: Mining Transport

Состав: Три цепных ролика

Тип подшипника: Подшипник KA

Тип: Ударная сила

Additional Info

Подробности Упаковки: 1)Neutral package & wooden package 2)Carton package+pallet 3)Wooden package+pallet 4)As customer request

производительность: 50000 Pieces/day

марка: XKTE/OEM

транспорт: Ocean,Land,Air,Express

Место происхождения: Shandong,China

Способность поставки: 50000 Pieces/Day

Сертификаты : ISO9001:2015

Порт: Qingdao,Guangzhou,Shenzhen

Описание продукта

The buffer idler roller is also called impact idler roller, is installed below the conveyor receiving section, which reduces the impact of material on the conveyor belt when the material is dropped, and the service life of the long conveyor belt is 100-600. The roll body and the seal are made of high polymer material and are resistant to corrosion. They are used in various industries such as mining, pulp & paper, cement, chemical, which is highly demanded for its high durability and strong construction. XKTE specialize in producing ball bearing for conveyor idler roller, and also supply conveyor components such as roller, pulley etc.

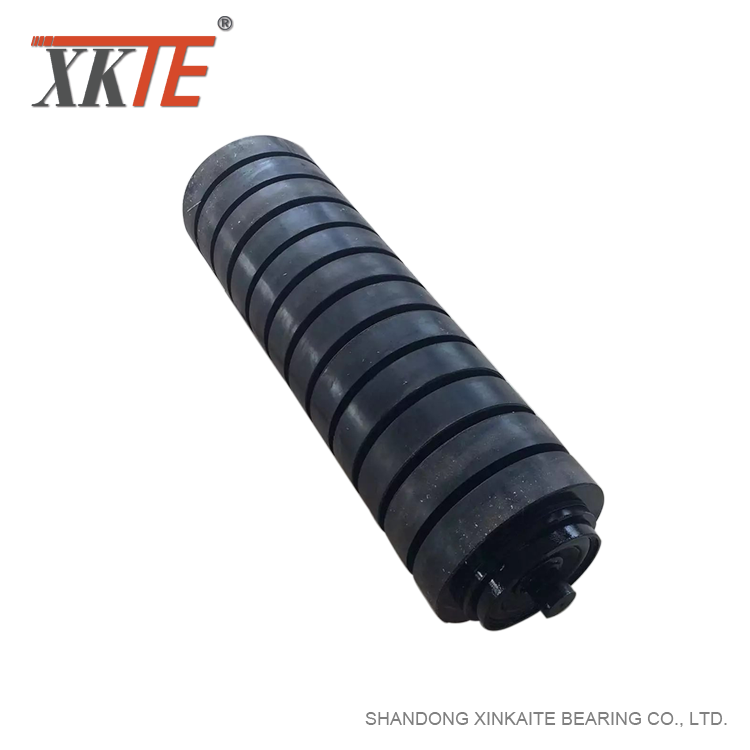

Buffer Idler Roller


Buffer Idler Roller

Impact idler rollers are located at loading and transfer points, are a special version of troughing idlers, providing a roll with cushioning rubber discs to lessen the belt damage due to impact from materials being loaded onto the belt. The frame is additionally reinforced to increase ridgidity.

BENEFITS:

  • Ideal for areas of high impact loads
  • Ideal for heavy conveyor loading and transfer points
  • Protects the belt where the lumps, weight or shape can
    cause damage to the belt cover
  • For heavy duty applications
  • Capable for areas with freefall onto the conveyor
Impact IdlerBuffer Idler RollerImpact Idler


Diameter of idler mm

Length of idler(tube)mm

Bearings

89

190.200.230.240.280.305.315.375.380.455.465.600.750.950.1150

6204

108

190.200.240.250.305.315.375.380.455.465.525.600.700.750.800.950.1150.1400

6205

133

305.350.375.380.455.465.525.530.600.700.790.800.950.1150.1400.1600

6305

159

375.380.455.465.525.630.600.640.670.700.750.790.800.900.950.1050.1120.1150.1400.1600

6306 6308

193.7

600.640.750.800.900.950.1050.1120

6308    6310

217

600.640.1050.1120

6310



Types of Ball bearing for belt impact idler:

6200/6300 series deep groove ball bearing

6200/6300 series is well suited for low to heavy radial loads and can be configured for various application speeds and running precision requirements. Reinforced iron Retainer, Super-finished deep groove, smooth race, thicker inner and outer ring.

6200/6300 Series Deep Groove Ball Bearing

Model

Bore Size(mm)

Outer Diameter(mm)

High(mm)

Weight(kg)

ball no.

Cr(kN)

Cor(kN)

6204

20

47

14

0.106

8

12.8

6.65

6205

25

52

15

0.128

9

14

7.85

6305

25

62

17

0.232

7

20.6

11.3

6306

30

72

19

0.346

8

26.7

15

6307

35

80

21

0.457

8

33.4

19.3

6308

40

90

23

0.639

8

40.8

24

6309

45

100

25

0.837

8

52.8

31.8

6310

50

110

27

1.082

8

61.8

38

Material  Chrome Steel GCr15

Types:

Nylon cage bearing: 6204KA---6308KA 6204KA/C3---6308KA/C3 6204KA/C4---6308KA/C4

6305 Ka Nylon Retainer Ball Bearing

Rubber Sealed bearing: 6204-2RS/RS---6310-2RS 6204-2RZ---6310-2RZ 180204---180308

Rubber Sealed Deep Groove Ball Bearing

Shielded Ball Bearing: 60204---60310 6204KA-Z---6308KA-Z 6204TN-Z---6308TN-Z 6204ZZ---6310ZZ

Iron Shielded Deep Groove Ball Bearing

Our Service:

1. Volume production and large Inventories, stable quality

2. OEM is supported

3. Small order accept

4. Various Brands

5. Wide Array of Applications

6. Fast delivery

7. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.


About US:

Shandong Xinkaite Bearing Co., Ltd. is a professional belt conveyor roller bearing manufacturer enterprise, specialized in manufacturing bearings and conveyor components for the bulk material handling industry. our bearings are being used in multiple applications including: mining machinery, carrying idlers and reverse rollers as well as drum pulley. Our factory is located in Yandian of Liaocheng in mainland China, covered an area of 18,000 square meters, registered trademarks "XKTE".


To be the first class, to do the best quality, to make users satisfied, to ensure customers relieved, are our enterprise purposes. Welcome bearing dealers` and conveyor idler manufacturers contact from all over the world, and become our partner.

Factory New


Packing


Packing Types
